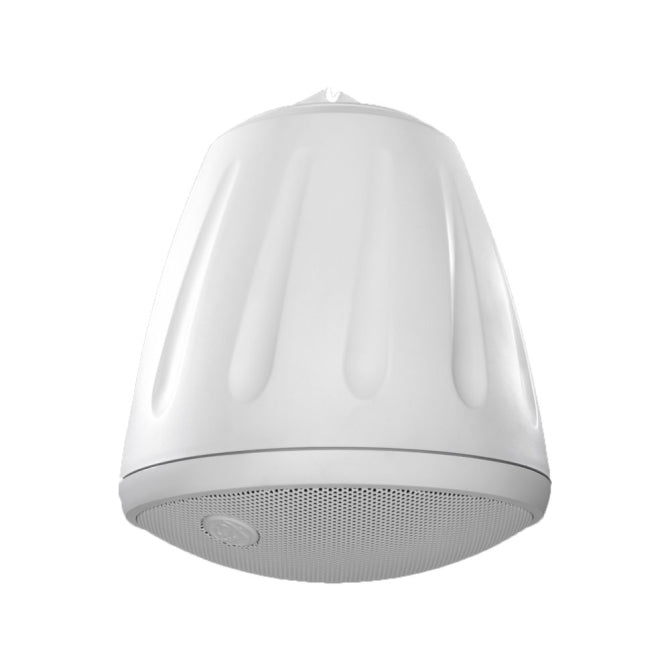

Soundtube RS600i-WH Hanging Speaker

SoundTube RS600I Hanging Speaker in White

The RS600i has a 6.5-inch polypropylene woofer and one 1.0 inch convex titanium tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum baffle and heat sink. The two-way ported speaker with an open-ceiling enclosure design delivers effective low-end response (58 Hz) and 100° off-axis performance (2 to 10 kHz, indepen-dently verified). The RS600i uses patented ZeroReflection^™ enclosure technology for optimal sound reproduction and cabinet rigidity. SoundTube®'s proprietary BroadBeam^® waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The RS600i speaker design incorporates a low-profile grille, proprietary motor-board and a six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass positions. Hanging hardware is included and features a SpeedClamp^™ self-locking cable grip for fast, easy and secure installation. Euroblock connector and terminal weather boot are included.

Owner's Manual |  Tech Sheet |  Mechanical Drawing |  A&E Specs |  GLL |  EASE 4.0 |  EASE 3.0 |  CLF 1 |  CLF 2 |  Revit |  DXF |  DWG |  PDF Drawing |  Tap Switch Instructions |  UL Certificate
