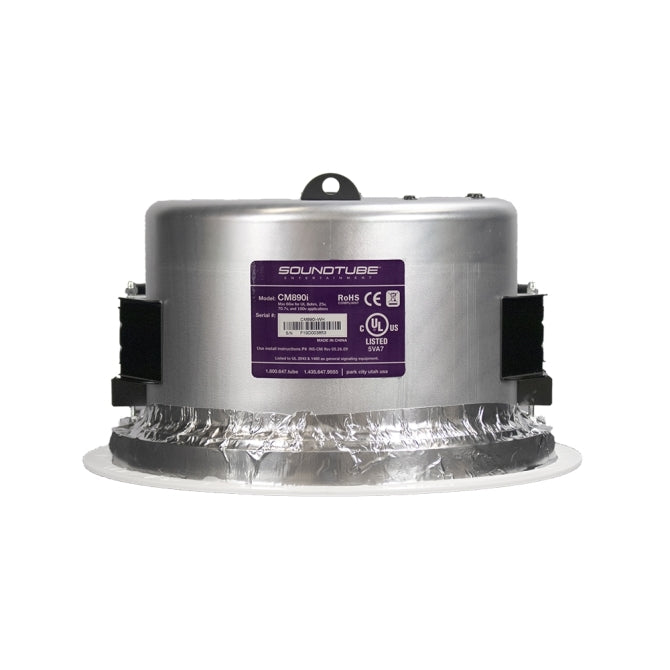

CM890i-WH In-Ceiling Speaker — White (Each)
$787.00
Available to order
Available to order — awaiting stock Contact us for lead times.
The requested quantity is not currently in stock. Ordinary backorders may be cancelled before shipment, and standard return terms apply.
We will email a shipment update within one business day of your order, then weekly while you wait and promptly if the estimate changes.
$35 standard shipping per order; free over $1,000. Contiguous U.S. + DC.
Other destinations or special delivery?
Secure checkout
Specialist audio advice
Is this right for your system?Talk to someone who knows the gear.
A closer look
Overview
The SoundTube CM890i-WH is an in-ceiling speaker for installed music and paging with a recessed ceiling finish.
At a glance
- One speaker per order quantity of 1.
- Finish: White.
- 8-inch main driver.
System and installation
Plan the cutout, mounting depth, ceiling structure and wiring before installation. Match the amplifier connection and any transformer tap to the system design; use the model’s installation drawings for final measurements.
Before you order
Confirm current availability and the delivery estimate for your project. Contact Speaker Village with your room or site details, amplifier model and required quantity for help checking the setup.
Technical details and downloads
Patented BroadBeam Ring™ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. A 66-watt transformer and high output for the sound reinforcement and PA markets. One 8.0 inch treated fiber driver and one compression driver with a 1.0 inch exit mounted to a proprietary cast-aluminum baffle and heat sink. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixes to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy access six-position tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Average sensitivity of 93.0 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.
Included accessories: Tile bridge, conduit plate, Euroblock connector and paint mask/installation aid.
Owner's Manual | Tech Sheet | Mechanical Drawing | Minimum/Maximum Ceiling | GLL | EASE 4.0 | CLF 1 | CLF 2 | A&E Specs | Revit | DXF | DWG | PDF Drawing | Tap Switch Instructions | UL Certificate
The finer details
Product information
- Brand
- SoundTube
- Product
- SoundTube CM890i-WH In-Ceiling Speaker — White (Each)
- Category
- Speaker
- SKU
