CM82-EZ-II-WH In-Ceiling Speaker — White (Each)
$243.00
Available to order
Available to order — awaiting stock Contact us for lead times.
The requested quantity is not currently in stock. Ordinary backorders may be cancelled before shipment, and standard return terms apply.
We will email a shipment update within one business day of your order, then weekly while you wait and promptly if the estimate changes.
$35 standard shipping per order; free over $1,000. Contiguous U.S. + DC.
Other destinations or special delivery?
Secure checkout
Specialist audio advice
Is this right for your system?Talk to someone who knows the gear.
A closer look
Overview

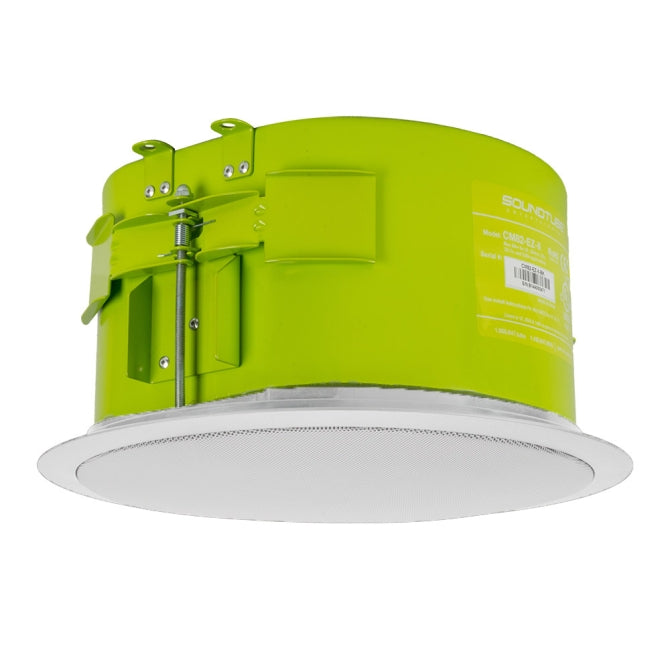

The SoundTube CM82-EZ-II-WH is an in-ceiling speaker for installed music and paging with a recessed ceiling finish.
At a glance
- One speaker per order quantity of 1.
- Finish: White.
- 8-inch main driver.
System and installation
Plan the cutout, mounting depth, ceiling structure and wiring before installation. Match the amplifier connection and any transformer tap to the system design; use the model’s installation drawings for final measurements.
Before you order
Confirm current availability and the delivery estimate for your project. Contact Speaker Village with your room or site details, amplifier model and required quantity for help checking the setup.
Technical details and downloads
The next generation version of the CM82-EZ with improved and additional features. One 8.0 inch (203 mm) polypropylene woofer with butyl rubber surround and one 1.0 inch (25.4 mm) silk dome tweeter. Easy-access six-position tap switch for 25/70.7/100-volt and 16-ohm transformer bypass settings allows for easy ordering, stocking and installation. Reduced amplification costs and maximum efficiency 89.0 dB sensitivity, 16 ohm impedance and a sealed enclosure. Superior voice intelligibility with an average coverage angle of 95 (210 kHz, independently verified). Cost-effective 16 ohm settings allows for the use of multiples of two, four, or six speakers in a system using a standard amplifier without a transformer. Incorporates a painted steel grille with rust inhibitor for lasting durability. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Adaptable to ceiling thicknesses ranging from 0.04 inch (0.9 mm) to 1.60 inch (40.6 mm). UL 1480 (UEAY) and 2043, cUL, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved.
Included accessories: Choose between a tile bridge or a pre-construction bracket, UL-listed 0.5-inch conduit clamp, paint shield and two wire nuts.
Owner's Manual | Tech Sheet | Mechanical Drawing | A&E Specs | GLL | EASE 4.0 | EASE 3.0 | CLF1 | CLF2 | UL Certificate
