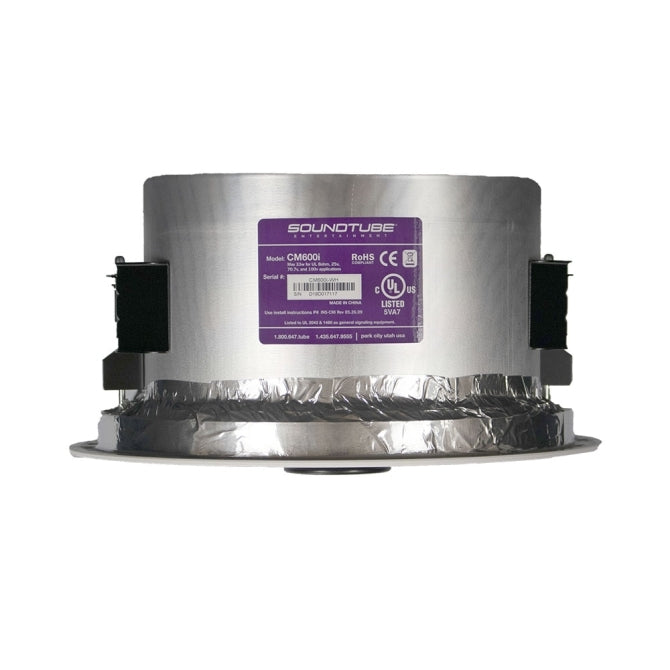

Soundtube CM600i-BK In Ceiling Speaker

SoundTube CM600i In Ceiling Speaker in Black

Patented BroadBeam^™ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. One 6.5 inch polypropylene woofer and one 1.0 inch convex aluminum tweeter with FerroFluid cooling mounted to a proprietary cast-aluminum motor-board and heat sink. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.69 inch (42.9 mm). Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with a transformer bypass position. Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting. Steel grille with protective powder-coated finish for lasting durability. Average sensitivity of 88 dB offers high-output capabilities and reduced amplification costs. UL 1480 (UEAY) and 2043 approved.

Included accessories: Tile bridge, Euroblock connector, paint mask, conduit plate.

Owner's Manual | Tech Sheet | Mechanical Drawing | Minimum/Maximum Ceiling | GLL | EASE 4.0 | EASE 3.0 | CLF 1 | CLF 2 | A&E Specs | Revit | DXF | DWG |  PDF Drawing |  Tap Switch Instructions |  UL Certificate
