Atlantic Technologies
SoundTube
CM31-EZ-WH In-Ceiling Speaker — White (Each)
$133.00
Available to order
Available to order — awaiting stock Contact us for lead times.
The requested quantity is not currently in stock. Ordinary backorders may be cancelled before shipment, and standard return terms apply.
We will email a shipment update within one business day of your order, then weekly while you wait and promptly if the estimate changes.
$35 standard shipping per order; free over $1,000. Contiguous U.S. + DC.
Other destinations or special delivery?
Secure checkout
Specialist audio advice
Is this right for your system?Talk to someone who knows the gear.
A closer look
Overview

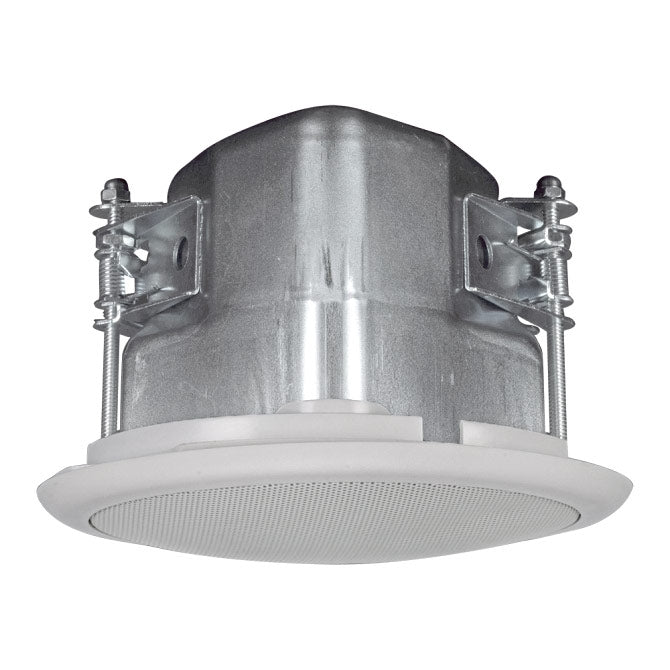

The SoundTube CM31-EZ-WH is an in-ceiling speaker for installed music and paging with a recessed ceiling finish.
At a glance
- One speaker per order quantity of 1.
- Finish: White.
- 3-inch main driver.
System and installation
Plan the cutout, mounting depth, ceiling structure and wiring before installation. Match the amplifier connection and any transformer tap to the system design; use the model’s installation drawings for final measurements.
Before you order
Confirm current availability and the delivery estimate for your project. Contact Speaker Village with your room or site details, amplifier model and required quantity for help checking the setup.
Technical details and downloads
3 inch PREMIUM FULL-RANGE IN-CEILING SPEAKERS. One 3 inch (76.2 mm) full-range high-extrusion, high-fidelity polypropylene driver with butyl rubber surround. Weatherized components for indoor/outdoor applications. Shallow 3.5 inch (88.9 mm) deep all-steel backcan with integrated driver and baffle configuration. Ultra-compact design with a total visible footprint of less than 6.3 inch (160.6 mm)diameter. Rapid installation, blind-mount, fixed-wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1 in. (2.5 mm) to 1.5 in. (38.1 mm). Corrosion-resistant, powder-coated aluminum grille with snap fit attachment. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. UL 1480 (UEAY) and 2043 approved. Included accessories: Choose between a Tile bridge or a Pre-Construction Bracket. IP-Rating: IP54.
Owner's Manual | Tech Sheet | Mechanical Drawing | A&E Specs | GLL | EASE 4.0 | EASE 3.0 | CLF1 | CLF2 | DXF | DWG | PDF Drawing | UL Certificate
The finer details
Product information
- Brand
- SoundTube
- Product
- SoundTube CM31-EZ-WH In-Ceiling Speaker — White (Each)
- Category
- Speaker
- SKU
Delivery & availability
Standard shipping is $35 per order on merchandise totals of $1,000 or less, and free on orders over $1,000, within the 48 contiguous states and Washington, DC. Your rate appears automatically at checkout. Availability to order does not guarantee immediate shipment. Contact us to confirm lead times or arrange other destinations and special services.
Read our shipping policyReturns
Warranty & product support
Manufacturer warranty terms vary by brand and product. We can help you confirm coverage and find the right product support.
Contact usWill it work with my system?
Tell us about your room, existing equipment, and listening goals. We’ll help you check compatibility before you order.
Ask an audio specialistKeep exploring
More for your system.
SoundTubeCM31-EZ-WH In-Ceiling Speaker — White (Each)$133.00
