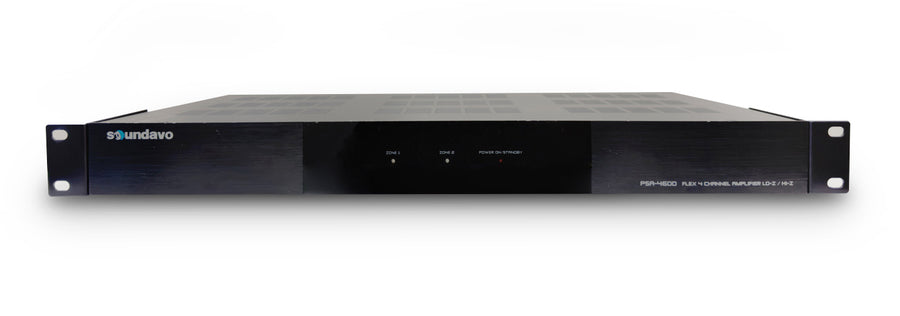

Soundavo PSA-4600 4 Channel Amplifier

Soundavo PSA-4600 4 Channel Amplifier

$799.99 USD
$799.99 USD
Sale Sold out

PSA-4600 is a extremely flexible Direct Drive 4-channel digital amplifier designed with the highest technology in materials and construction to provide excellent performance and audio quality in your installation. With sufficient edibility to meet the demands in residential or corporate environments that can be used in 4Ω/8Ω in stereo mode, or bridge mode in Hi-Z 70V/100V selectable.


Each channel can provide up to 2 x 150W RMS of continuous power 4Ω or 8Ω in stereo mode, can also be bridged to support up to 2 x 300W into 70V or 100V loads, ideal for Low-Z or High-Z residential and corporate commercial applications.

 Features:


- Full Single 19” Rack-Mount Design
- 4 Channels Model – 150W RMS per channel
- Stereo mode into 4-8 Ohm loads
- Bridged mode 2 x 300W output for 70V or 100V (Direct Drive)
- Power down after ~15 minutes of no signal and comply with Energy Star Power consumption limits of < 0.5W in standby
- RED LED (Front Panel) to indicated Standby mode is active
- Terminal Block analog audio inputs (4 Channel input)
- Selection for Power-On mode
- Switch for High Pass Filter
- Remote STANDBY control
- Amplifier status output
- Short circuit protection
- Overheating protection


Spec:

Power Output:
-Stereo Mode (all channels driven)
150W x 4, 8Ω (31 V) RMS output (steady state), per channel @ < 1 % THD+N
150W x 4, 4Ω (22 V) RMS output (steady state), per channel @ < 1 % THD+N

-Bridged Mode (per bridged output pair)
2 x 300W, 70V @ < 1 % THD+N
2 x 300W, 100V @ < 1 % THD+N
(1/8 Rated Power, Run Time: continuous operation)

Frequency Response: 20 Hz - 20 kHz, +/- 2 dB @ 4Ω Load
Signal to Noise: >90dB A WTD(20 Hz - 20 kHz)
Input Sensitivity: 1.23 V (+4 dBu)
Gain Value: 25 dB @ 8Ω
Input Impedance: >10k, balanced or unbalanced
Maximum Input Level: 12.3 V (+24 dBu)
High Pass Filter: 80 Hz
Input Connectors: 3 pin Euro terminal x 4
Remote Connectors: 5 pin Euro terminal
Output Connectors:
4 pin Euro terminal (4Ω/8Ω)

2 pin Euro terminal (70V/100V)                                                                  Dimensions: 434mm(W) x 237mm(D) x 44mm(H)                                            Power Requirements: 100 - 240 VAC, 50 - 60 Hz, 1000W Max.
