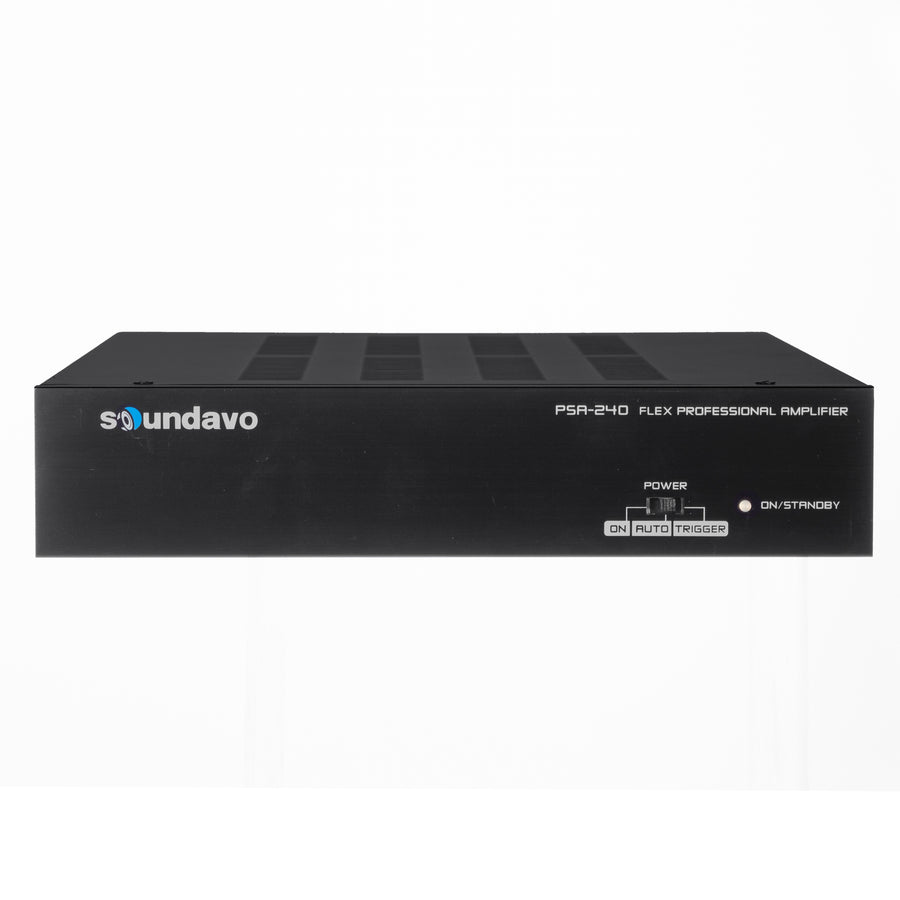

Soundavo PSA-240 2 Channel A,plifier

Soundavo PSA-240 2 Channel A,plifier

$599.99 USD
$599.99 USD
Sale Sold out

PSA-240 is a extremely flexible Direct Drive 2-channel digital amplifier that can be used in 4Ω or 8Ω in stereo mode or bridge mode in Hi-Z 70V or 100V selectable. Each channel can provide up to 120W RMS of continuous power in 4Ω or 8Ω in stereo mode, can also be bridged to support 240W RMS, and up to 240W into 70V or 100V loads, ideal for Low-Z or High-Z residential and corporate commercial applications.



Features:
 -Half Rack 1U, 9.5 inches special tiny design
-Two Channels Model – 120W RMS per channel
-Stereo into 4-8 Ohm loads
-Bridged mode 240W output for 70V or 100V (Direct Drive)
-Power down after ~15 minutes of no signal and comply with Energy Star Power consumption limits of < 0.5W in standby
-Red LED ( Front Panel) to indicated Standby mode is active
-Terminal Block analog audio inputs
-Selection for Power-Up mode
-Switch for High Pass Filter
-Natural cooling without Fan-
-TRIGGER could be external remoting ON/OFF
-Short circuit protection
-Overheating protection



Spec:
Stereo Mode (all channels driven)
120W x 2, 8Ω (31 V) RMS output (steady state), per channel @ < 1 % THD+N
120W x 2, 4Ω (22 V) RMS output (steady state), per channel @ < 1 % THD+N
Bridged Outputs (per bridged output pair)
240W, 70V @ < 1 % THD+N
240W, 100V @ < 1 % THD+N
(1/8 Rated Power Run Time: continuous operation)
Frequency Response 20 Hz - 20 kHz, +/- 2 dB @ 4Ω Load
Signal to Noise >90dB A WTD(20 Hz - 20 kHz)
Input Sensitivity 1.23 V (+4 dBu)
Gain Value W 25 dB @ 8Ω
Input Impedance >10k, balanced or unbalanced
Maximum Input Level 12.3 V (+24 dBu)
Trigger In/Out DC 12V
High Pass Filter 80 Hz
Input Connectors 5 pin Euro terminal
Trigger Connectors 3.5 mm Jacks
Output Connectors 4 pin Euro terminal (4Ω/8Ω)
2 pin Euro terminal (70V/100V)
Dimensions 214mm(W) x 249.8mm(D) x 44mm(H)
Net Weight XXX Kg
Shipping Weight XXX kg
Power Requirements 100 - 240 VAC, 50 - 60 Hz, 350W
