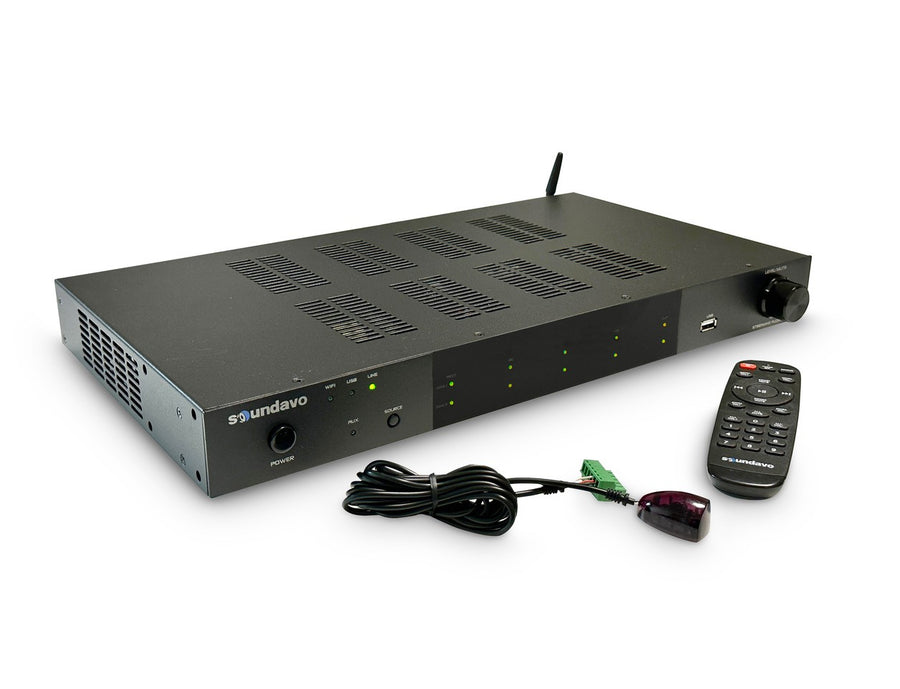

PSA-2500X Streaming Amplifier

Combine network music playback and distributed-audio amplification with the Soundavo PSA-2500X. It provides two 70V/100V outputs and selectable Wi-Fi streaming, balanced auxiliary, RCA line and USB audio inputs.

At a glance

• Two output channels rated at 500W each for 70V/100V speaker systems.
• Wi-Fi streaming and Ethernet network connection.
• Balanced auxiliary, RCA line and USB audio source options.
• 1U rack format, RS-232 connectivity and an included IR remote.

Is it right for your system?

Designed for transformer-equipped distributed speaker systems in spaces such as restaurants, meeting rooms and retail environments. Use speakers and tap settings suitable for the selected 70V/100V mode. Two outputs do not by themselves establish two independently selectable streaming sources; confirm your source-routing needs before ordering.

Key specifications

• Rated output: 2 × 500W at 70V/100V, below 1% THD+N; manufacturer lists continuous-operation testing at 1/8 rated power
• Frequency response: 20Hz–20kHz, ±2dB
• Dimensions (W × D × H): 434 × 237 × 44 mm
• Controls: IR remote, RS-232 and 12V trigger mode

Compare your options

For a lower-output 70V/100V streaming option, compare the PSA-2300X.

Ask Speaker Village for help matching your amplifier and speakers. For setup instructions, see Soundavo's product manuals.
