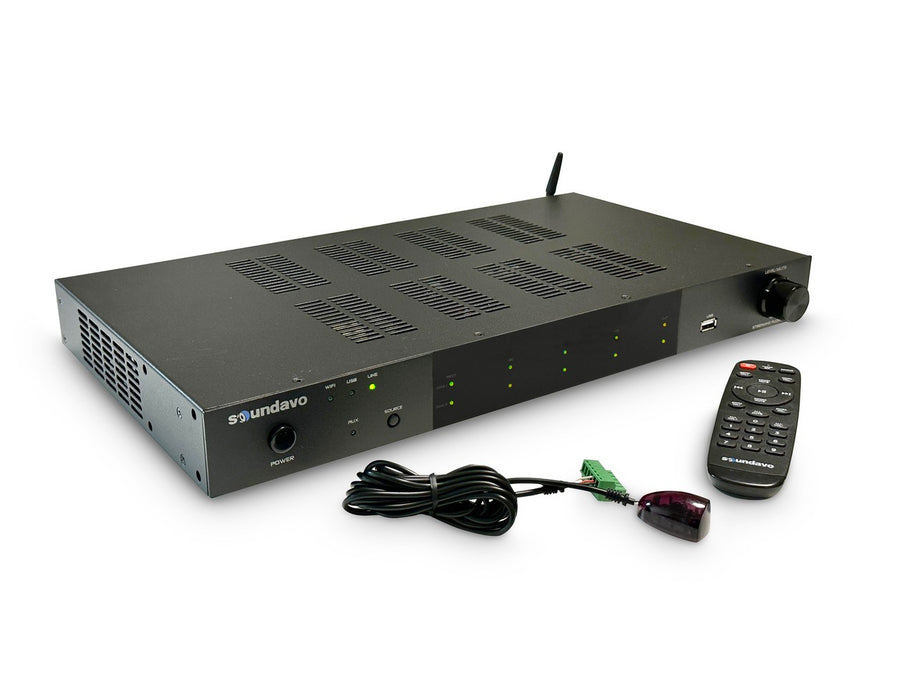

PSA-2300X Streaming Amplifier

The Soundavo PSA-2300X brings streaming audio and two-channel 70V/100V amplification together in a 1U chassis. Select from network streaming, balanced auxiliary, RCA line or USB audio for a distributed speaker installation.

At a glance

• Two output channels rated at 300W each for 70V/100V systems.
• Wi-Fi streaming and Ethernet network connection.
• Balanced auxiliary, RCA line and USB audio inputs.
• RS-232 connectivity, 12V trigger mode and an included IR remote.

Is it right for your system?

Choose this model for a transformer-equipped commercial speaker system when its output capacity fits the planned tap load. Confirm speaker voltage, total tap wattage and source-routing requirements. Two outputs should not be read as a promise of independent music streams.

Key specifications

• Rated output: 2 × 300W at 70V/100V, below 1% THD+N; manufacturer lists continuous-operation testing at 1/8 rated power
• Frequency response: 20Hz–20kHz, ±2dB
• Dimensions (W × D × H): 434 × 237 × 44 mm
• Cooling: Fan cooled

Compare your options

Need more output capacity for your distributed speaker load? Compare the PSA-2500X and confirm the system design with us.

Ask Speaker Village for help matching your amplifier and speakers. For setup instructions, see Soundavo's product manuals.
