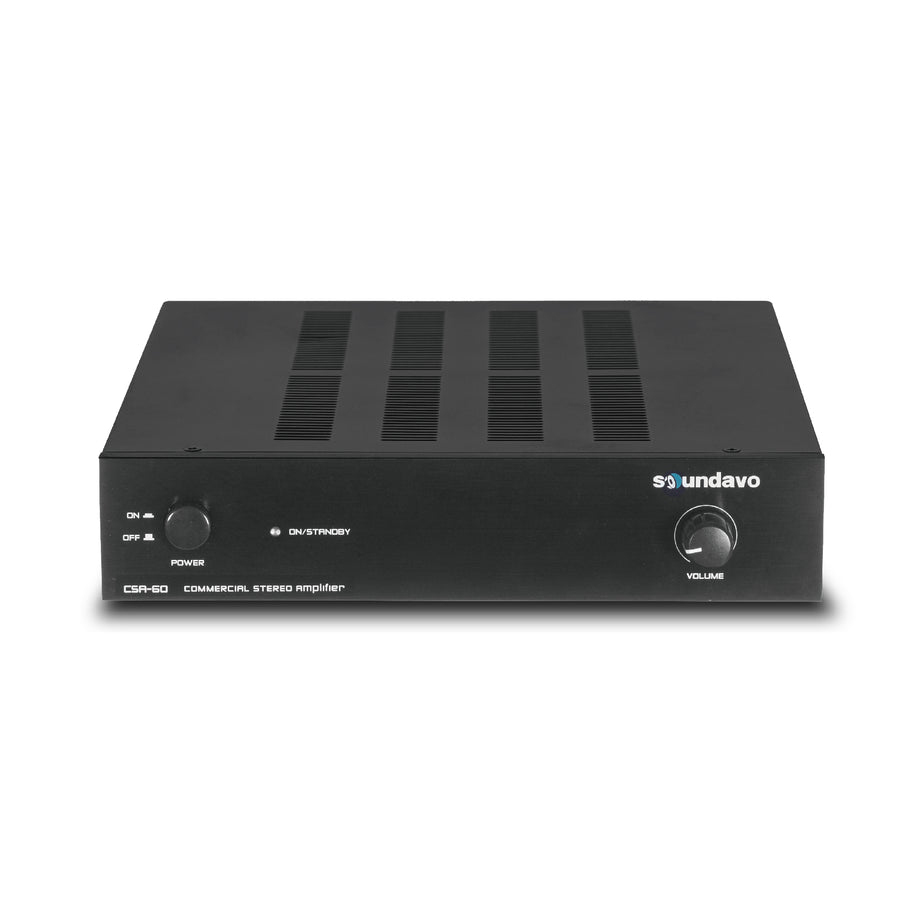

CSA-60 Stereo Amplifier

Add compact stereo amplification with the Soundavo CSA-60. It can power a pair of conventional passive speakers or run in bridged mono mode for a compatible 8-ohm load.

At a glance

• 2 × 60W RMS at 8 ohms or 2 × 90W RMS at 4 ohms.
• 180W RMS bridged output into 8 ohms.
• Line-level audio input and binding-post speaker connections.
• Automatic signal-sensing turn-on, with thermal and short-circuit protection.

Is it right for your system?

Use this model to add an amplified stereo zone to an existing source or a system with a suitable line-level output. Bridged mode combines both channels into one output; confirm your speaker load and connection plan first.

Key specifications

• Stereo rating: 2 × 60W RMS at 8 ohms; 2 × 90W RMS at 4 ohms
• Bridged rating: 180W RMS at 8 ohms
• Frequency response: 20Hz–20kHz, +0/−2dB at 8 ohms
• Dimensions (W × D × H): 214 × 250 × 44 mm

Compare your options

For 70V/100V capability as well as low-impedance stereo, compare the PSA-240.

Ask Speaker Village for help matching your amplifier and speakers. For setup instructions, see Soundavo's product manuals.
