Atlantic Technologies IC-8.3-S In Ceiling Speaker
Atlantic Technologies IC-8.3-S In Ceiling Speaker
Regular price
$400.00 USD
Regular price
Sale price
$400.00 USD
Unit price
/
per
Couldn't load pickup availability
Atlantic Technology IC-8.3-S 8" Trimode Thin Bezel In-Ceiling Spkr-SINGLE

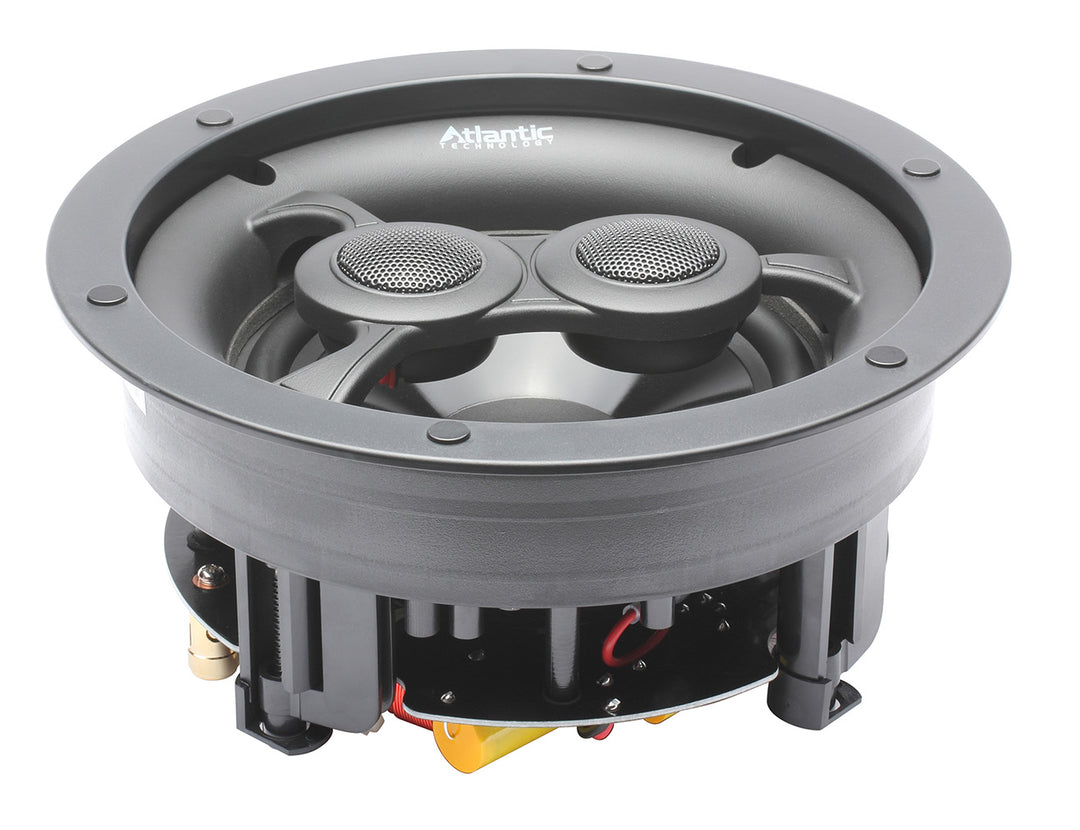

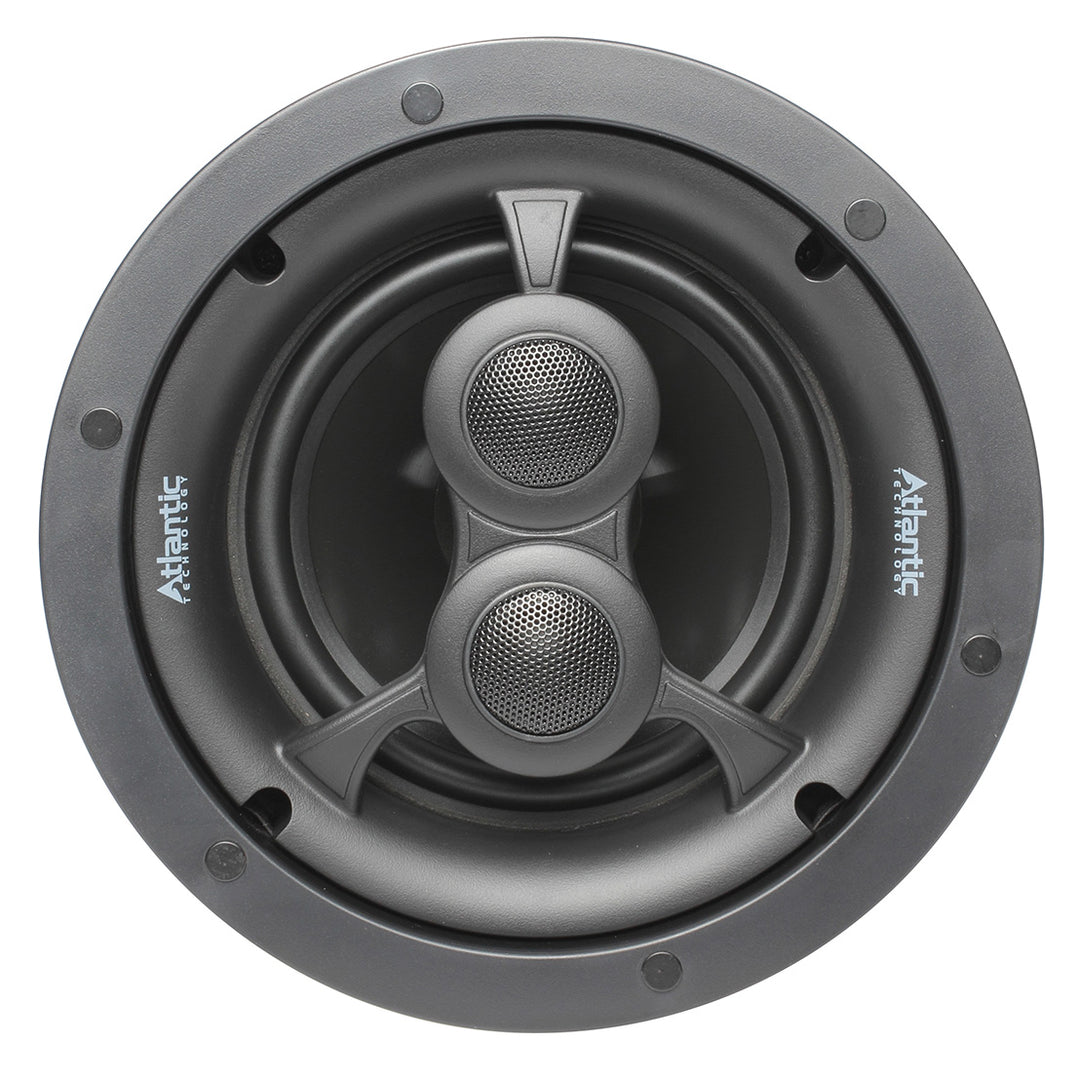

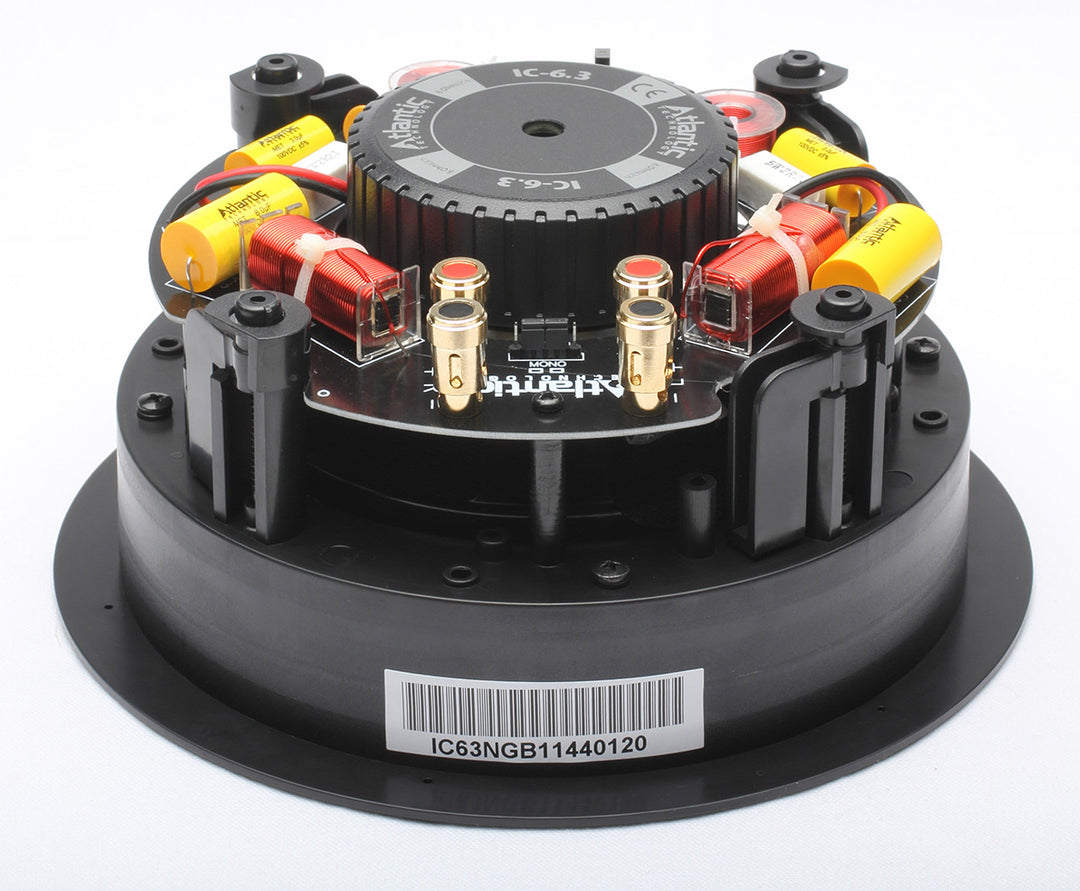

The IC-6.3/8.3 TriMode™ ceiling mount speaker is a high-quality, versatile solution for your audio needs. With its sleek design, it blends seamlessly into your ceiling, providing an unobtrusive yet powerful audio solution. Equipped with unique dual voice coil woofers and dual 1″ soft-dome pivoting tweeters, it offers a range of configurations for the best audio coverage, whether it's surround sound for your home theater or whole-house music installations.
| IC-6.2 | IC-6.3 | IC-6HT | IC-6SLM | IC-8.2 | IC-8.3 | |
|---|---|---|---|---|---|---|
| Woofer | 6.5" PPM Cone, rubber surround, 1" voice coil, vented pole piece | 6.5" PPM Cone, rubber surround, 1" voice coil, vented pole piece | 6.5" PPM Cone, rubber surround, 1" voice coil, vented pole piece | 6.5" PPM Cone, rubber surround, 1" voice coil, vented pole piece | 8" PPM Cone, rubber surround, 1.25" voice coil, vented pole piece | 8" PPM Cone, rubber surround, 1.25" voice coil, vented pole piece |
| Tweeter | 1" silk dome, wide dispersion, 30 degrees of tilt, ferro-fluid cooled, neodymium magnet | 1" silk dome, wide dispersion, 30 degrees of tilt, ferro-fluid cooled, neodymium magnet | 1" silk dome, wide dispersion, 30 degrees of tilt, ferro-fluid cooled, neodymium magnet | 1" silk dome, wide dispersion, 30 degrees of tilt, ferro-fluid cooled, neodymium magnet | 1" silk dome, wide dispersion, 30 degrees of tilt, ferro-fluid cooled, neodymium magnet | 1" silk dome, wide dispersion, 30 degrees of tilt, ferro-fluid cooled, neodymium magnet |
| Crossover | 3.0 kHz, 12db per octave crossover, PP capacitors, tweeter protection circuit | 2.7 kHz, 12db per octave crossover, PP capacitors, tweeter protection circuit | 2.7 kHz, 12db per octave crossover, PP capacitors, tweeter protection circuit | 3.0 kHz, 12db per octave crossover, PP capacitors, tweeter protection circuit | 2.7 kHz, 12db per octave crossover, PP capacitors, tweeter protection circuit | 2.7 kHz, 12db per octave crossover, PP capacitors, tweeter protection circuit |
| Frequency Response | 48Hz-22Lhz | 48Hz-22Lhz | 45Hz-22Lhz | 50Hz-22Lhz | 45Hz-22Lhz | 45Hz-22Lhz |
| Sensitivity | 88dB | 88dB | 88dB 1W/1M | 92dB | 89dB | 89dB |
| Recommended Amplifier Power | 10-125 Watts RMS | 10-125 watts RMS | 10-125 watts RMS | 10-100 Watts RMS | 10-150 Watts RMS | 10-150 Watts RMS |
| Impedance | 6Ω | 8Ω per channel | 6Ω | 6Ω | 6Ω | 8Ω per channel |
| Cut-Out Size | 8" (202mm) | 8" (202mm) | 8" (202mm) | 8" (202mm) | 9 5 /8″ (244mm) | 9 5 /8″ (244mm) |
| Mounting Depth | 4 1/4" (10.80 cm) | 4" (10.16 cm) | 5 1/4" (13.34 cm) | 2 3/4″ (70mm) | 4 3/4" (12.07 cm) | 4 3/4" (12.07 cm) |
| Weight (single speaker) | 3.5 lbs (1.59kg) | 3.6 lbs, (1.64kg) | 5 lbs (2.27 kg) | 2.6 lbs, (1.2kg) | 5 lbs. (2.27 kg) | 5.25 lbs. (2.39 kg) |
| New Construction Kit (optional) | IC-NC-TLC-6 | IC-NC-TLC-6 | IC-NC-TLC-6 | IC-NC-TLC-6 | IC-NC-TLC-8 | IC-NC-TLC-8 |
| In-ceiling back box (optional) | IC-BOX-6/8 | IC-BOX-6/8 | IC-BOX-6/8 | IC-BOX-6/8 | IC-BOX-6/8 | IC-BOX-6/8 |
| Square Grills (optional) | SQ-GRILLS-6 (9 3/8") | SQ-GRILLS-6 (9 3/8") | SQ-GRILLS-6 (9 3/8") | SQ-GRILLS-6 (9 3/8") | SQ-GRILLS-8 (11″) | SQ-GRILLS-8 (11″) |
| Required Ceiling Thickness | 0.5 – 1″ | 0.5 – 1″ | 0.5 – 1″ | 0.5 – 1″ | 0.5 – 1″ | 0.5 – 1″ |
