Soundtube SM82-EZ-II-WX-WH Outdoor Speaker

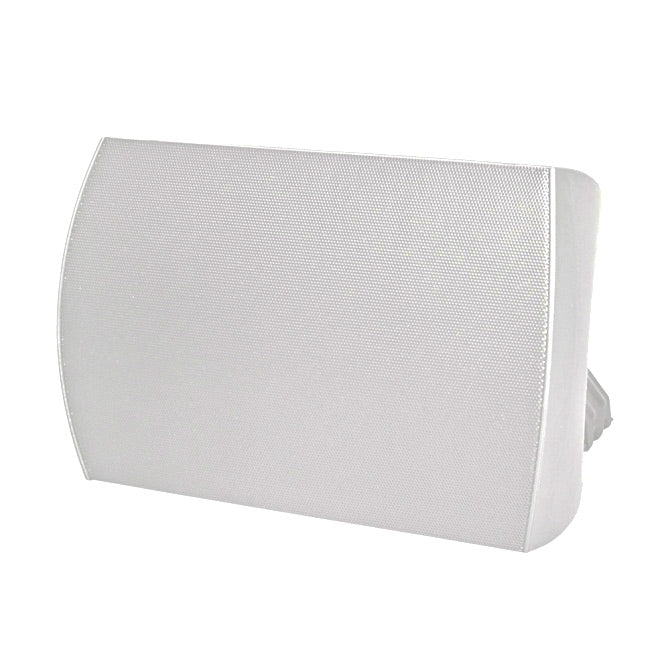

SoundTube SM82-EZ-II-WX Outdoor Surface Mount Speaker in White

Designed for extreme weather resistance, the SM82-EZ-II-WX is an economical solution for integrators who need a surface-mount outdoor speaker option for music and paging applications. SM82-EZ-II-WX incorporates a dedicated 8-inch polypropylene woofer and an offset 1-inch soft dome tweeter with waveguide to deliver superb intelligibility for background to foreground music and messaging (up to 106.0 dB max. SPL). SoundTube's proprietary BroadBeam Ring™ technology in all models ensures high intelligibility, even well off-axis. All SM-EZ-WX speakers are Weather Extreme with an IP65 rating, meaning the speakers are dust-tight and will withstand water jets aimed directly at them when installed with the included port plugs.

The SM82-EZ-II-WX uses a 64-watt low-insertion loss transformer and a six-position tap switch with a transformer bypass position. Enclosures for the SM82-EZ-II-WX are ported, with port plugs included; grilles and mounting hardware are powder coated aluminum. Mounting for the SM82-EZ-II-WX includes a proprietary, tool-free, low-profile Stealth^™ bracket with a direct drive cam-wedge for stable and precise aiming up to 90 in one direction. Inputs are made via ceramic terminal strips, making these speakers suitable for European voice evacuation systems. A safety cable, wall mount bracket, conduit connector and port hole plug are all included. IP-Rating: IP65.

*Note: If used indoors, remove the grille and take the plug out of the port for greater bass output. Port must remain plugged to maintain IP65 rating in outdoor use.

Owner's Manual | Tech Sheet | Mechanical Drawing | A&E Specs | GLL | CLF 2
