SM500i-II-WX-WH Outdoor Surface-Mount Speaker — White (Each)
$437.00
Available to order
Available to order — awaiting stock Contact us for lead times.
The requested quantity is not currently in stock. Ordinary backorders may be cancelled before shipment, and standard return terms apply.
We will email a shipment update within one business day of your order, then weekly while you wait and promptly if the estimate changes.
$35 standard shipping per order; free over $1,000. Contiguous U.S. + DC.
Other destinations or special delivery?
Secure checkout
Specialist audio advice
Is this right for your system?Talk to someone who knows the gear.
A closer look
Overview

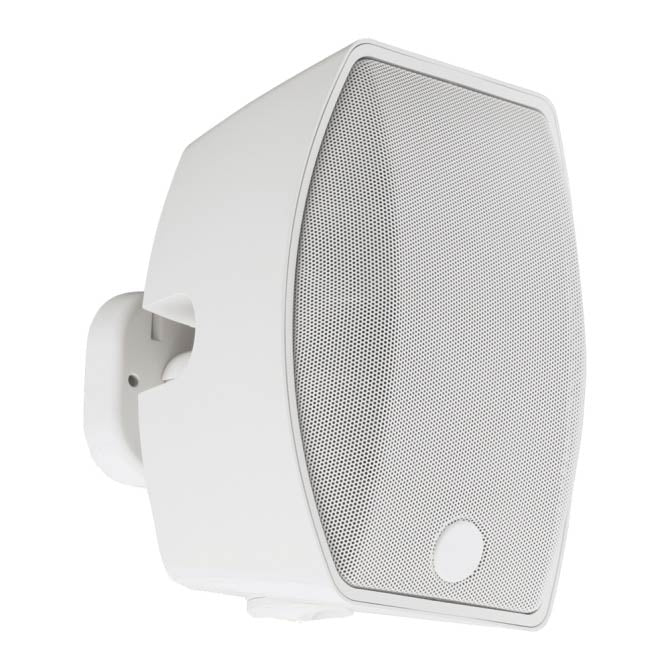

The SoundTube SM500i-II-WX-WH is an outdoor surface-mount speaker for wall-mounted music and paging in outdoor spaces.
At a glance
- One speaker per order quantity of 1.
- Finish: White.
- 5.25-inch main driver.
System and installation
Plan speaker spacing, cable routing and secure mounting for the outdoor location. Match amplifier impedance or constant-voltage taps to the exact model, and follow the manufacturer’s guidance for weather exposure and drainage.
Before you order
Confirm current availability and the delivery estimate for your project. Contact Speaker Village with your room or site details, amplifier model and required quantity for help checking the setup.
Technical details and downloads
SoundTube®'s WX Weather Guard technology utilizes a dual layer hydrophobic material inside the speaker grille to keep water from the drivers and internal electronics in even the most extreme weather conditions. The SM500I-II-WX utilizes the patented ZeroReflection™ enclosure technology for optimal sound reproduction and cabinet rigidity as well as BroadBeam® waveguide technology to deliver a consistent dispersion pattern up to 10 kHz for maximum coverage area per speaker. The SM500I-II-WX has one 5.25 inch (133 mm) polypropylene woofer and one 1.0 inch (25 mm) convex titanium tweeter with FerroFluid™ cooling. The speakers 86.0 dB average sensitivity offers high output capabilities and reduced amplification costs and the six-position selectable tap switch for 25-, 70.7- and 100-volt applications provides easy access. The included SM500i-II-WX Stealth™ bracket mounting system with vertical and horizontal pivoting allow the SM500i-II-WX to be aimed anywhere within the installation space and the low profile enclosure design keeps the speaker close to the wall. Safety cable with speaker mounting bolt, Euroblock connector, wall mount bracket and terminal weather boot are included. IP-Rating: IP44.
Owner's Manual | Tech Sheet | Mechanical Drawing | A&E Specs | DXF | DWG | PDF Drawing | GLL | Tap Switch Instructions | Mount Bracket Drawing
The finer details
Product information
- Brand
- SoundTube
- Product
- SoundTube SM500i-II-WX-WH Outdoor Surface-Mount Speaker — White (Each)
- Category
- Speaker
- SKU
