Soundtube SA202-II-RDT Mini Amp With Powersupply

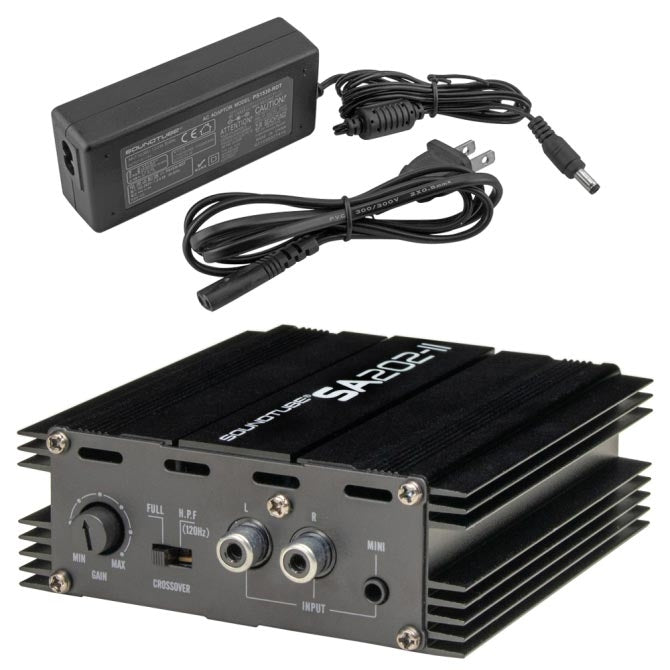

SA202-II-RDT SoundTube Class AB Mini Amplifier with Power Supply

The SA202-II-RDT amplifier is an ultra-compact, 2-channel amplifier with extra heat sink surfaces for extended duty at full power. Rated at 20 watts per channel output at 4 Ohms with max gain of 35 dB. Dual RCA, stereo mini jack, and high-level inputs. Power inputs include either three-pin Euroblock or barrel connector. 12-volt trigger for automatic on/off functions when source power is detected. Signal to noise ration is 92dB (100Hz, 12dB/octave, 4 Ohm, A-Weighted). Inputs: Stereo mini unbalanced, high level, RCA stereo, 12V trigger. Mounting hardware included and adapts to pole, surface or security attachment installations. Includes a 15-volt, 3-amp power supply.

Power per channel @ < 10 % THD: 20 watts (4 ohm stereo) 10 watts (8 ohm stereo

Power per channel @ < 1 % THD: 15 watts (4 ohm stereo) 8 watts (8 ohm stereo)

Owner's Manual |  Tech Sheet |  Mechanical Drawing |  SA202 without pole/surface mount |  SA202 with pole/surface mount |  A&E Specs |  DXF |  DWG |  PDF Drawing | CE Certification
