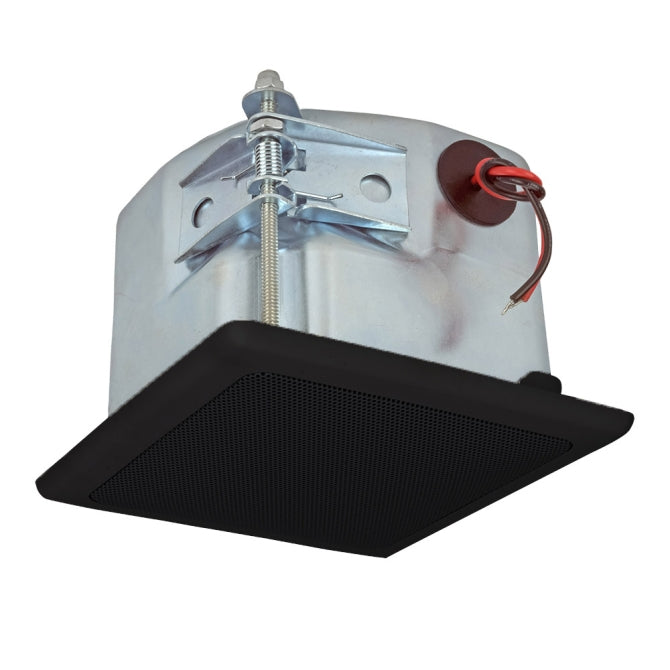

Soundtube IW31-EZ-BKIW31-EZ-BK In wall Speaker

SoundTube IW31-EZ In-Wall Speaker in White

The IW31-EZ is a premium full-range 3-inch in-wall speaker for applications requiring 8 ohm or distributed audio solutions. The IW31-EZ incorporates a low profile grille with a total visible footprint of a 5 inch square and an integrated backcan and driver design for an ultra compact installations in wall plates. The speaker includes a rapid installation, blind-mount fixed-wing mounting mechanism with constant tension design affixing to wall thicknesses ranging from 0.1 inch (2.5 mm) to 1.5 inch (38.1 mm). The in-wall speaker includes a six-position tap switch with a transformer bypass position. Mounting hardware is included and features a fast and secure constant tension Speed Wing^™ mounting system. All components in the IW31-EZ are completely weatherized for indoor and outdoor applications. Conduit connector, paint mask and wire nuts are included. IP-Rating: IP54.

Owner's Manual | Tech Sheet | Mechanical Drawing | Minimum/Maximum Ceiling | A&E Specs | GLL | EASE 4.0 | EASE 3.0 | CLF 1 | CLF 2 | DXF | DWG | PDF Drawing | UL Certificate
