Soundtube IPD-TSB2.0 Dante Series

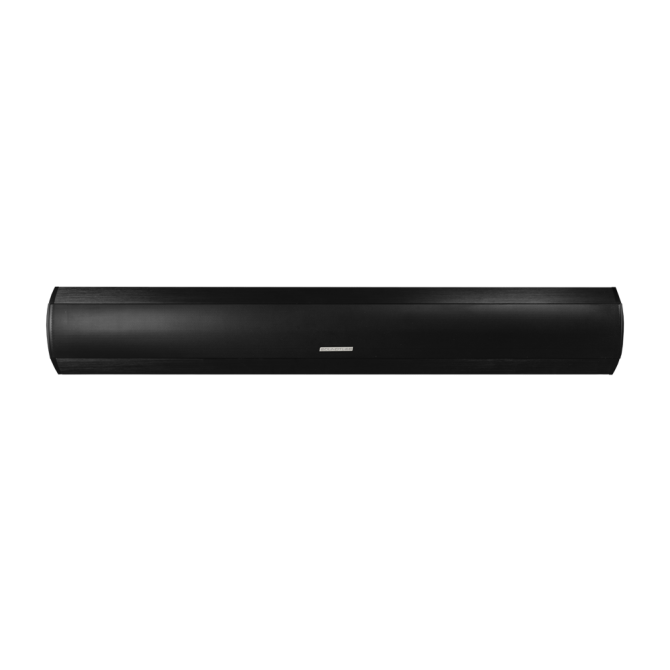

SoundTube IPD-TSB2.0 Dante-Enabled Soundbar

An ultra-thin 2-way Dante-enabled digital end-point solution in a soundbar configuration. Measuring only 1.5 inches thick where the bar meets the TV, the soundbar incorporates a right and left speaker with four 3-inch polypropylene woofers with NBR surrounds, four bass radiators, and two 0.75-inch synthetic soft dome tweeters. Wall and table-top mounting hardware are included.

The IPD-TSB2.0 Soundbar brings Dante connectivity from end-to-end in conferencing and boardroom video installations. Making the soundbar interoperable with other Dante products gives integrators additional flexibility when designing and installing audio systems. Built with high-quality materials and stylish brushed metal cosmetics, the IPD-TSB2.0 Soundbar is a reliable, unrivaled solution for any audio/video system.

The Dante Soundbar is made of extruded aluminum and has an integrated metal grill which is designed to integrate seamlessly underneath 55-inch and larger monitors. With digital signals plus PoE power sent directly to the speakers via standard category cable, SoundTube’s STNet Soundbar is simple to connect. The intelligent amplifier with DSP monitors the functions of the speaker and can send an alert if there are any problems with the SoundBar. Each IPD-TSB2.0 is configurable using SoundTube STNet Control Center software. The software is used to setup the SoundBar via an 8 band parametric EQ, delay and input and output gain using a built in pink noise generator. And, because they are on the Dante platform, they are interoperable with a host of other products worldwide. They may be used with SoundTube’s STNet Switch, offering up to 40 watts PoE to each speaker, or with standard PoE or PoE+ switches.

Note: SoundTube IPD speakers are NOT compatible with PoE++. 30W PoE maximum (or 40W maximum with STNet Switch II)

Owner's Manual |  Tech Sheet |  Wall Bracket Line Drawing |  Table Top Stand Line Drawing |  3D DWG |  Cutsheet |  STNet Control Center Software User Manual |  STNet/Dante Firmware Download
