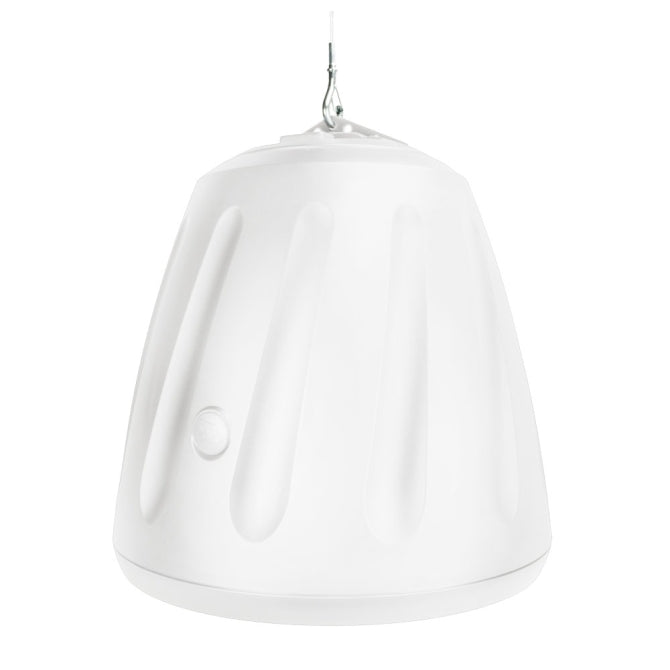

Soundtube HP590i-WH Hanging Speaker

SoundTube HP590i Hanging Speaker in White

Patented BroadBeam Ring^™ waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage. One 5.25 inch polypropylene woofer and one 1.0 inch convex titanium tweeter with a 90° waveguide mounted to a proprietary cast-aluminum baffle and heat sink. Weatherized components for indoor and outdoor applications. Average sensitivity of 87.5 dB offers high output capabilities and reduced amplification costs. Patented ZeroReflection^™ enclosure technology for optimal sound reproduction and cabinet rigidity. Easy-access six-position selectable tap switch for 25-, 70.7- and 100-volt applications with transformer bypass position. Includes hanging hardware with galvanized steel cables and integrated SpeedClamp™ self-locking wire grip for fast, easy and secure installation. Also includes Euroblock connector and terminal weather boot. UL 2239 (hanging cable) approved.

Owner's Manual |  Tech Sheet |  Mechanical Drawing |  A&E Specs |  GLL |  EASE 4.0 |  EASE 3.0 |  CLF 1 |  CLF 2 |  Revit |  DXF |  DWG |  Tap Switch Instructions |  PDF Drawing
