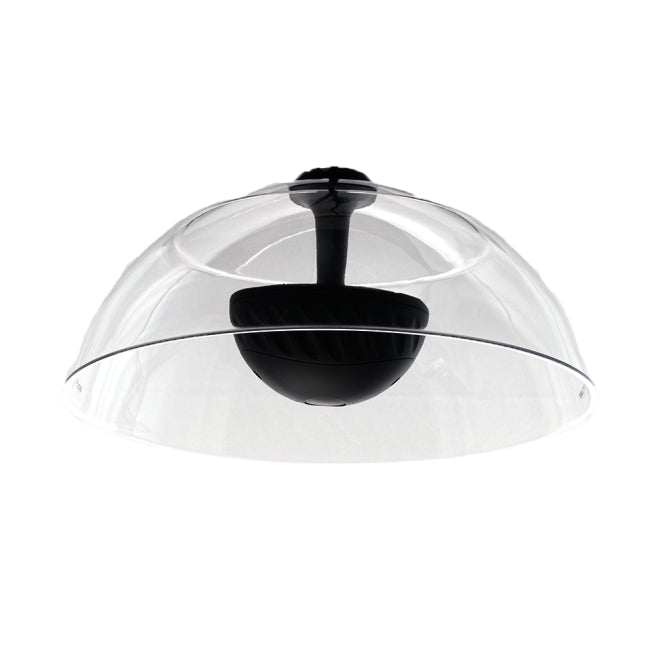

FP6020-II SoundDome Directional Speaker (Each)

Delivers targeted audio in a unique package. Features: Patented Dual-Parabolic^™ dispersion control technology provides a targeted audio footprint with true stereo separation. Twin 1 inch (25 mm) concave aluminum high-excursion drivers in individually sealed compartments for stereo or mono music and messaging. Patented ZeroReflection^™ enclosure technology for accurate sound reproduction. Narrow 30 coverage angle for sharp focus (2 kHz, independently verified). 20.25 in (514.3 mm) custom-molded PETG clear polymer dome for minimal visual impact. User-selectable 350 Hz high-pass filter. Single-point balanced mounting for easy and clean-looking installs. Ships with clear dome. Included accessories: hanging bracket, mounting bushing and a 15-foot hanging cable which includes four 16-gauge inputs and a CAT V cable. Optional modules include Motion Sensor (FP-Motion), LED light (FP-Light), optional 15-volt, 3-amp power supply necessary for all module accessories (AC-PS-1530). Optional electronic accessories include 10 and 20-watt transformers with junction box for 25, 70.7, and 100-volt applications (AC-JB10-XFMR, AC-JB20-XFMR) and an external amplification unit with power supply (SA202-RDT) for use with any FP module.

All models can be wired in either 8-ohm stereo or 4 ohm mono with an optional 25/70.7/100-volt transformer available. Ideal for high-definition music and messaging with tight coverage, full-range stereo sound (130 Hz - 22 kHz, - 10 dB). True audio containment (45 averaged, 2 - 10 kHz) also makes the FP6020-II ideal for focused audio applications including kiosks, P.O.P. displays, trade shows, digital signage, or any place where contained high-fidelity stereo or mono sound is required, but visual impact must be minimized.

Additional optional accessories include: wall bracket, sound sleeves, and rigid mount adaptor. Ships as an individual unit, bulk shipping available.

The FP-MOTION MODULE accessory can be used to mute/unmute the audio stream based on the presence of motion below the parabolic speaker (among other trigger functions). It does not pause/play/stop/restart the audio track. For applications where an audio file must be paused or restarted from the beginning when motion is detected, we recommend a third-party message repeater like the Mackenzie MiniMac2 or the Eletech EM212A.

Owner's Manual | Tech Sheet | Mechanical Drawing | A&E Specs | DXF | DWG | PDF Drawing | Maximizing Speaker Directivity | CE Certification
