CM1001D-T-BK In-Ceiling Subwoofer — Black (Kit)
$850.00
Available to order
Available to order — awaiting stock Contact us for lead times.
The requested quantity is not currently in stock. Ordinary backorders may be cancelled before shipment, and standard return terms apply.
We will email a shipment update within one business day of your order, then weekly while you wait and promptly if the estimate changes.
$35 standard shipping per order; free over $1,000. Contiguous U.S. + DC.
Other destinations or special delivery?
Secure checkout
Specialist audio advice
Is this right for your system?Talk to someone who knows the gear.
A closer look
Overview

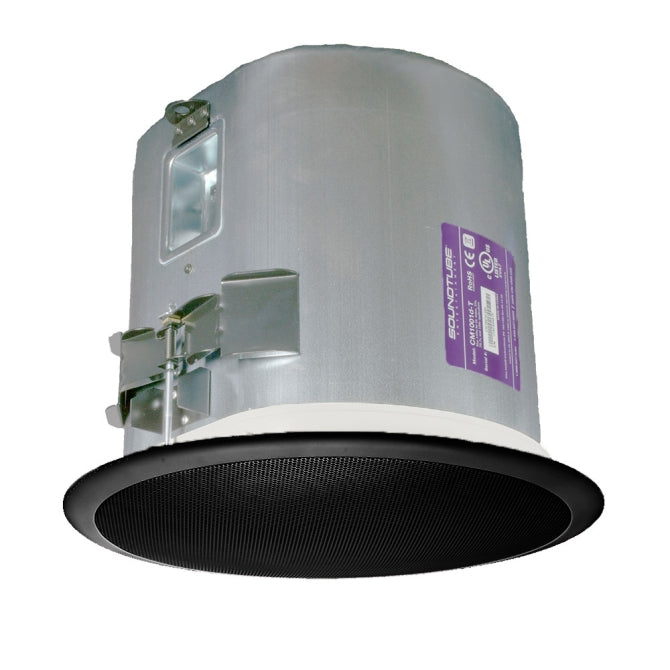

The SoundTube CM1001D-T-BK is an in-ceiling subwoofer for adding bass to a distributed ceiling system.
At a glance
- One subwoofer installation kit; review the included accessories and mounting option below.
- Finish: Black.
- 10-inch driver, deep back can and transformer.
System and installation
Plan the cutout, mounting depth, ceiling structure and wiring before installation. Match the amplifier connection and any transformer tap to the system design; use the model’s installation drawings for final measurements.
Before you order
Confirm current availability and the delivery estimate for your project. Contact Speaker Village with your room or site details, amplifier model and required quantity for help checking the setup.
Technical details and downloads
One 10 inch polypropylene cone with a butyl rubber surround on a reinforced ABS baffle. High output and maximum efficiency with an accentuated 70 Hz peak to maximize listener's low-frequency experience. Extra-large SoundTube-specific 12.9 liter steel deep can for quality bass response. Rapid-installation, blind-mount, fixed-wing mounting mechanism with constant-tension design affixing to ceiling thicknesses ranging from 0.25 inch (6.4 mm) to 1.91 inch (48.5 mm). Easy-access five-position tap switch for 25-, 70.7-, 100-volt and transformer bypass position. Steel grille with protective powder-coated finish for lasting durability plus a tool-free strap for easy installation. Baffle-mounted, flared and tuned port for maximum efficiency and frequency response. UL 1480 (UEAY) and 2043, CE (EMC Directive 89/366/EEC, EN55020, EN55013) approved.
Included accessories:Grille, UL-rated cover plate, four-pin Euroblock, paint shield and restraint cable, and choose between a color-coded (purple) tile bridge or a pre-construction bracket.
Owner's Manual | Tech Sheet | Mechanical Drawing | Revit | DXF | DWG | A&E Specs | PDF Drawing | Tap Switch Instructions | UL Certificate
The finer details
Product information
- Brand
- SoundTube
- Product
- SoundTube CM1001D-T-BK In-Ceiling Subwoofer — Black (Kit)
- Category
- Speaker
- SKU
Delivery & availability
Standard shipping is $35 per order on merchandise totals of $1,000 or less, and free on orders over $1,000, within the 48 contiguous states and Washington, DC. Your rate appears automatically at checkout. Availability to order does not guarantee immediate shipment. Contact us to confirm lead times or arrange other destinations and special services.
Read our shipping policyReturns
Warranty & product support
Manufacturer warranty terms vary by brand and product. We can help you confirm coverage and find the right product support.
Contact usWill it work with my system?
Tell us about your room, existing equipment, and listening goals. We’ll help you check compatibility before you order.
