WS66i-KIT-W Audio Matrix Kit with 6 White LCD Keypads
$1,999.99
Available to order
Available to order — awaiting stock Contact us for lead times.
The requested quantity is not currently in stock. Ordinary backorders may be cancelled before shipment, and standard return terms apply.
We will email a shipment update within one business day of your order, then weekly while you wait and promptly if the estimate changes.
$35 standard shipping per order; free over $1,000. Contiguous U.S. + DC.
Other destinations or special delivery?
Secure checkout
Specialist audio advice
Is this right for your system?Talk to someone who knows the gear.
A closer look
Overview

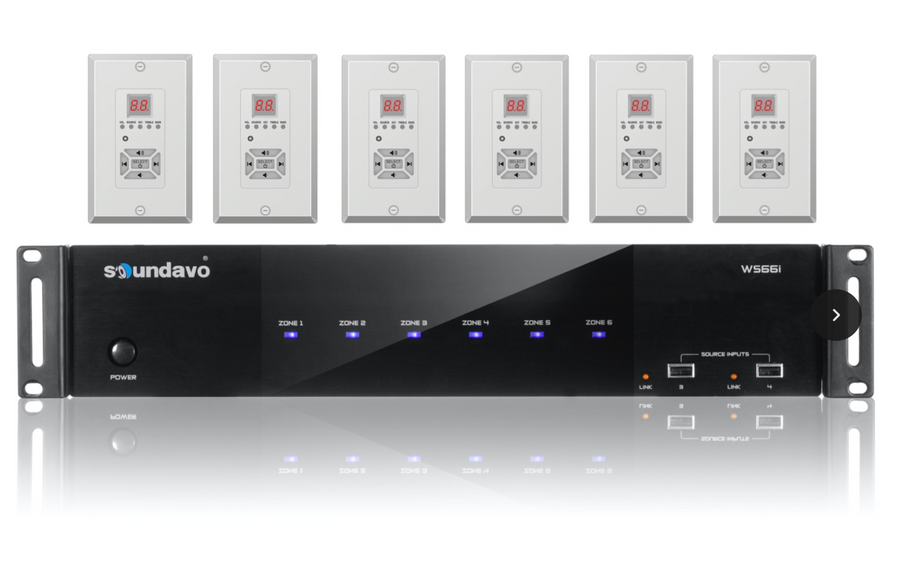

Soundavo WS66i-KIT-W with 6 White LCD Keypads
This whole-home audio matrix kit includes a WS66i amplifier and six white LCD backlit zone keypads. Control music in six zones using the included keypads, IR remote or app. The system supports expansion to 18 zones with two additional units.
Connect the WS66i to your local Ethernet network to stream music. Two front-panel USB ports support playback from USB storage, and an optical digital input connects a compatible TV or CD player.
White LCD Keypad Kit Package Contents:
WS66i Amplifier x 1
White LCD Backlit Zone Keypad x 6
Remote Control x 1
RJ-45 connection Hub x 1
Power Cord x 1
User Manual x 1
WS66i Amplifier x 1
White LCD Backlit Zone Keypad x 6
Remote Control x 1
RJ-45 connection Hub x 1
Power Cord x 1
User Manual x 1
Features:
- Stream your favor music from tablet or smart phone or use all the most popular streaming services
- Supports AirPlay/DLNA/UPnP, NAS and Local(on device) music play and a wide range of online music services including TuneIn,Spotify, DEEZER, iHeartradio and more. APP also with lots of free online music library for searching and play.Compatible with iPhone,iPad, Android Smart Phones and tablets,Mac and Windows laptops,NAS,etc.
- Each zone provides 25W x 2 at 8Ω, 50W x 2 at 4Ω, or 100W bridged at 8Ω
- High efficiency more than 85% Class D amplification
- 6 Line input sources, including 2 Audio Streamer (Input 3, 4)
- USB inputs for playing music files from USB sticks (Input 3, 4)
- Each zone Stereo/Mono output selectable
- Enable control over Ethernet
- PRE-AMP output on Zone1~6
- Support Control APP / Software
- Built-in IR receiver & IR remote controller for Source select/Volume/Treble/Bass
- 12V DC trigger output to external device when the system is power on
- 12V DC mute trigger input from the external devices
- RJ45 Ethernet port for the wired connection to the local network
- Another RJ45 Ethernet expansion port for connecting with PC or other device
- RS-232 port allows 2-way communication with the Home Automation system
- Distribute 6 stereo audio signals to 6 rooms simultaneously (expandable up to 18 Zones by additional 2 units)
- 6 LEDs for 6 zones Power On, Standby and Mute
- Built in IR emitter
- AC 115V / 230V input power switchable
Specification:
Output Power: 25W x 2 per zone (at 8Ω)
Output Power: 50W x 2 per zone (at 4Ω)
Output Power: 100W per zone (Bridged at 8Ω)
S/N: >85dB A WTD
THD: <0.1%
Frequency Response: 20Hz-20KHz
Input Impedance: >47 K Ohm
Input Sensitivity: 250 mV
Protection Function: Overload, Short Circuit
System on Voltage: DC +12V
External Mute Voltage: DC +12V
Power Supply: AC115V/60Hz, 230V/50Hz
Output Connection: 4P Terminal Block
Input Connection: Input 1, 2 - RCA Jacks
Input 3, 4 – Streaming or USB
Input 5 – 3.5mm Jack
Input 6 – S/PDIF, 3.5mm Jack
Sampling Rate (Streaming): Up to 192KHz
Audio Format(USB): MP3/WMA/AAC/AAC+/ALAC/FLAC/APE/WAV
USB type: USB2.0, Support up to 64G.
Network: RJ45, Standard 10/100Mb
- Stream your favor music from tablet or smart phone or use all the most popular streaming services
- Supports AirPlay/DLNA/UPnP, NAS and Local(on device) music play and a wide range of online music services including TuneIn,Spotify, DEEZER, iHeartradio and more. APP also with lots of free online music library for searching and play.Compatible with iPhone,iPad, Android Smart Phones and tablets,Mac and Windows laptops,NAS,etc.
- Each zone provides 25W x 2 at 8Ω, 50W x 2 at 4Ω, or 100W bridged at 8Ω
- High efficiency more than 85% Class D amplification
- 6 Line input sources, including 2 Audio Streamer (Input 3, 4)
- USB inputs for playing music files from USB sticks (Input 3, 4)
- Each zone Stereo/Mono output selectable
- Enable control over Ethernet
- PRE-AMP output on Zone1~6
- Support Control APP / Software
- Built-in IR receiver & IR remote controller for Source select/Volume/Treble/Bass
- 12V DC trigger output to external device when the system is power on
- 12V DC mute trigger input from the external devices
- RJ45 Ethernet port for the wired connection to the local network
- Another RJ45 Ethernet expansion port for connecting with PC or other device
- RS-232 port allows 2-way communication with the Home Automation system
- Distribute 6 stereo audio signals to 6 rooms simultaneously (expandable up to 18 Zones by additional 2 units)
- 6 LEDs for 6 zones Power On, Standby and Mute
- Built in IR emitter
- AC 115V / 230V input power switchable
Specification:
Output Power: 25W x 2 per zone (at 8Ω)
Output Power: 50W x 2 per zone (at 4Ω)
Output Power: 100W per zone (Bridged at 8Ω)
S/N: >85dB A WTD
THD: <0.1%
Frequency Response: 20Hz-20KHz
Input Impedance: >47 K Ohm
Input Sensitivity: 250 mV
Protection Function: Overload, Short Circuit
System on Voltage: DC +12V
External Mute Voltage: DC +12V
Power Supply: AC115V/60Hz, 230V/50Hz
Output Connection: 4P Terminal Block
Input Connection: Input 1, 2 - RCA Jacks
Input 3, 4 – Streaming or USB
Input 5 – 3.5mm Jack
Input 6 – S/PDIF, 3.5mm Jack
Sampling Rate (Streaming): Up to 192KHz
Audio Format(USB): MP3/WMA/AAC/AAC+/ALAC/FLAC/APE/WAV
USB type: USB2.0, Support up to 64G.
Network: RJ45, Standard 10/100Mb
