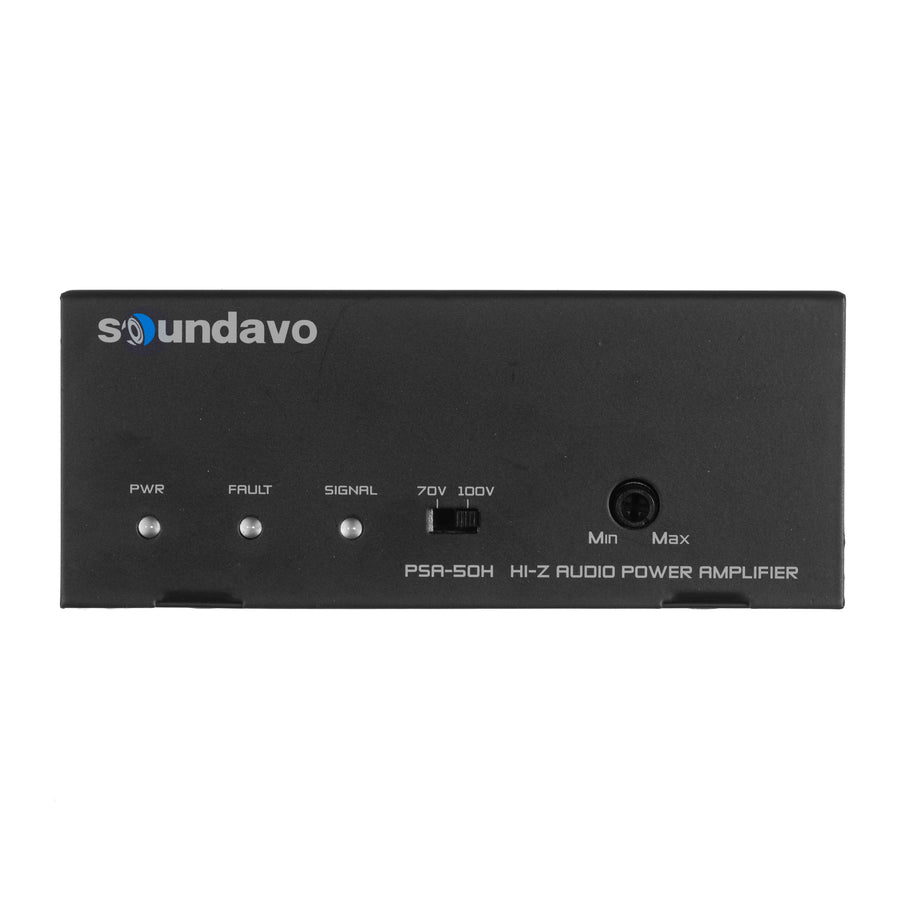

Soundavo PSA-50H Single Channel Amplifier
Soundavo PSA-50H Single Channel Amplifier
Regular price
$169.99 USD
Regular price
Sale price
$169.99 USD
Unit price
/
per
Couldn't load pickup availability
The PSA-50H is a single channel HI-Z audio power modular amplifier with Class D circuit provides 70/100V output for the commercial/installation application. Ultra efficient space saving compact design housing is easy for mounts on the wall or under cabinet/table, also can be installed and mounted as quarter or half width rack-mountable in a signal rack space
Features:
- Class D circuit
- Compact Space design
- Accepts Balanced / Unbalance inputs
- Convection Cooling - no mechanical fans
- Level adjustment on front panel
- Power / Fault / Signal LED indicators on Front Panel
- Enter Standby Mode id no input signal is detected for 5 mins
- Universal 100V-240V AC power supply
- Designed in 1U height
Spec:
Output Channel: 1
Total Output Power: 50W RMS @ 70/100V
Mode of Power Supply: Switching Mode
Line Input: RCA & 5P Detachable Terminal Block
Speaker Output: 2P Detachable Terminal Block
LED Indicator: Power/Standby in Green/Red, Fault in Red, Signal in Green
Operation AC Volage: 115V / 230V
Frequency Response: 20Hz ~ 22KHz +0/-3dB @4 Ohms
THD @ Max Power: < 1%
THD @ 1/8 Full Power: < 0.2%
SNR: > 98dB
Power Consumption: < 0.5W in Standby
Dimension (W x H x D): 108.5 x 44 x 203MM
