Soundavo

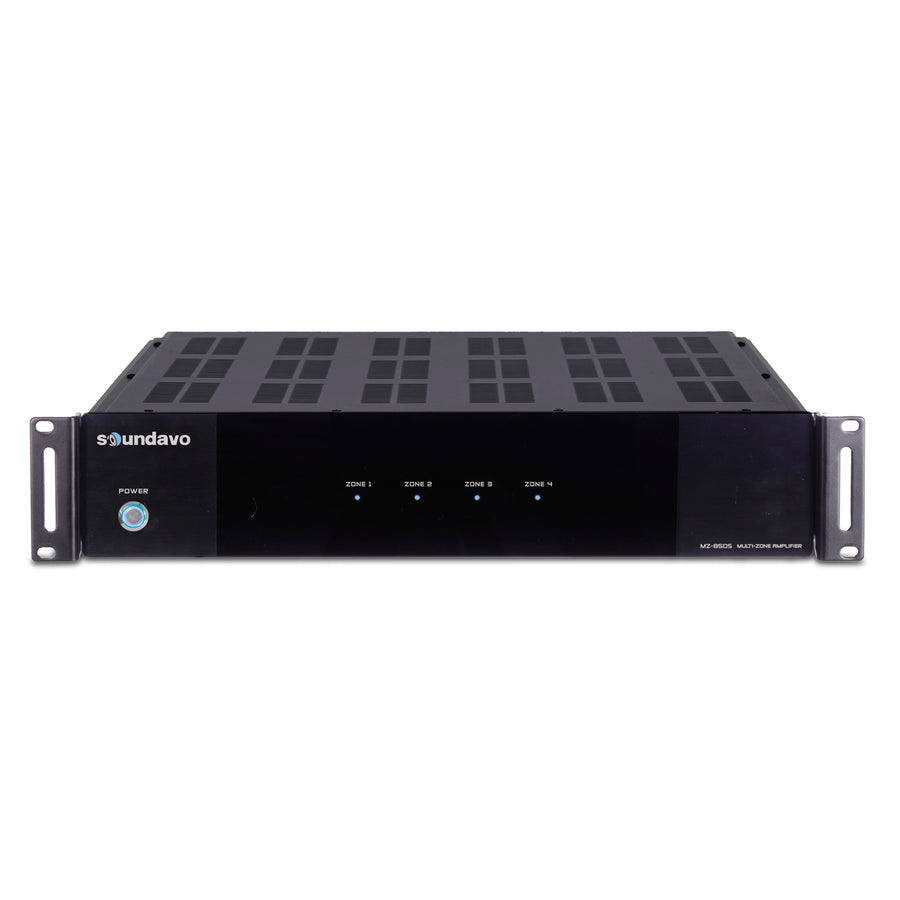

Soundavo MZ-850S 8 Channel Amplifier
Soundavo MZ-850S 8 Channel Amplifier
Regular price
$699.00 USD
Regular price
Sale price
$699.00 USD
Unit price
/
per
Couldn't load pickup availability
MZ-850S digital power amplifier comes with 8 Channels / 4 Zones, which is a powerful and integrated high efficient Class D. Idea for distributed audio, commercial installation or home theater application. It comes with many functionalities such as Bridgeable Zones, Auto Sensing, Global Trigger Input/Output, Auto Standby, S/PDIF input, Two BUS inputs/outputs that receives audio signals from standard line-level audio sources and sends them to any or all channel.
Features:
- 8 channels, 4 independent zones
- 50W per channel, bridged 160W per Zone
- Zones are bridgeable to create flexible power configurations
- Two common or BUS inputs that receives audio signals from standard line-level audio sources and sends them to any or all channels
- S/PDIF Optical Bus Input
- High efficiency, cool running digital amplification
- Global Trigger -Input/output triggers on/off for all zones on the bus input
- Zone Trigger -Independent trigger input/output on each zone for on/off
- Can be converted easily between rack-mount and tabletop configurations
- Heavy-duty steel chassis with black glass and brushed aluminum faceplate
Spec:
Power Output: 80W /Channel, 1kHz into 4 Ohms
50W /Channel, 1kHz into 8 Ohms
Bridged Power Output: 160W /Zone, 1kHz into 8 Ohms
Signal-to-Noise Ratio:90dB
Frequency Response: 20Hz to 20kHz +1.7/-1dB at 1W output into 8 Ohms
Minimum Impedance: Stereo Mode 4 Ohms, Bridge Mode 8 Ohms
Input Impedance: 22k Ohms Line Input
Trigger Inputs/output: Bus In /Out. Each Zone In/Out 12VDC 100mA
Zone Line Input: Line, S/PDIF or Bus select switch per zone
Bridge Mode: Select Stereo or Bridge mode per zone 8 Ohm only
Speaker Connectors: Detachable speaker terminals support up to 14 awg wire
Fuse Rating: 100-120V/T5A, 250V US , 220-230V/T2.5A, 250V Europe
