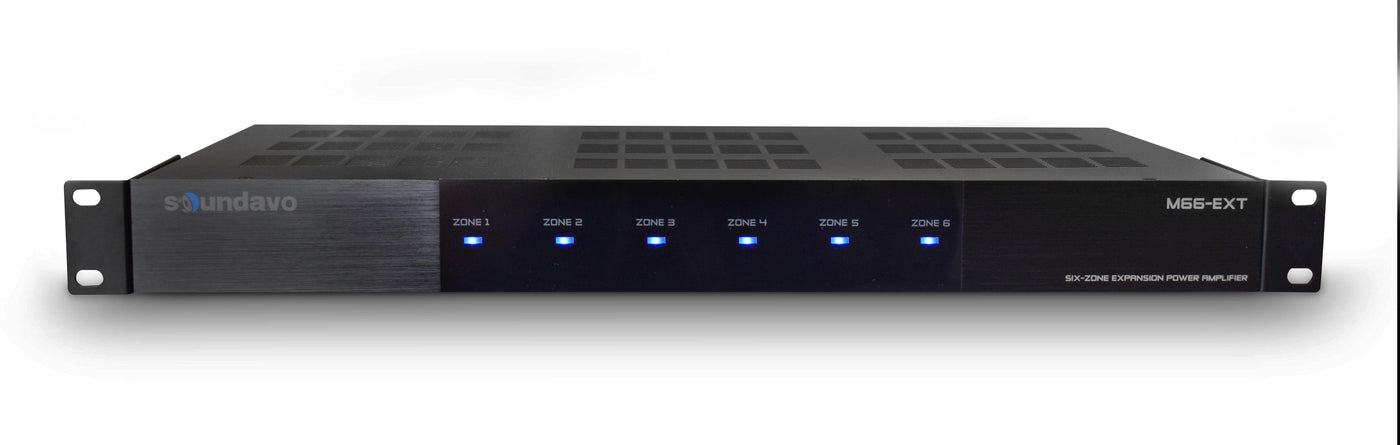

Soundavo M66-EXT Power Amplifier
Soundavo M66-EXT Power Amplifier
Regular price
$799.00 USD
Regular price
Sale price
$799.00 USD
Unit price
/
per
Couldn't load pickup availability
Soundavo M66-EXT, specially designed for custom integration of whole home audio systems, the M66-EXT serves as a expansion amplifier for the Soundavo WS66i to expand other 6 zone speaker outputs. it provides up to 50W x 2 power by class D amplifier and distribute at most to 18 zones (with 1 x WS66i and 2 x M66-EXT), which all can be controlled by APP, or the optional keypads & IR remote controller (optional)
*The M66-EXT unit is not work as stand-alone, so it does not have audio input and volume controls, the main 6 audio sources will come from the WS66i master unit
M66-EXT Included:
M66-EXT Amplifier x 1
Power Cord x 1
User Manual x 1
Features:
- Works together with Soundavo WS66i to expand speaker zone in custom integrated multi-room audio systems from original 6 zone to 12 zones (with Slave 1).
- 6 zones of high efficiency more than 85% Class D amplification with 4/8 ohms capable.
- Each of zone is also bridgeable to 100W RMS @ 8 ohms, giving you the option to increase power output to select speakers if needed.
- 6 LEDs for 6 zones Power On, Standby and Mute.
- Built in IR emitter output.
- Mini Jack TRS PRE-AMP output on each zone.
- Can be controlled via WS66i Control APP under Slave 1 and 2 page for the source selection, volume, zone on/off, treble, bass, mute and balance.
- Interlocks power on/off with Soundavo WS66i via Trigger I/O.
- Works with optional keypad/IR remote controller.
- 1U-high, rack-wide enclosure; removable rack ears and faceplate included.
- AC 115V / 230V input auto switching
Specification:
Output Power: 25W x 2 per zone (at 8Ω)
M66-EXT Amplifier x 1
Power Cord x 1
User Manual x 1
Features:
- Works together with Soundavo WS66i to expand speaker zone in custom integrated multi-room audio systems from original 6 zone to 12 zones (with Slave 1).
- 6 zones of high efficiency more than 85% Class D amplification with 4/8 ohms capable.
- Each of zone is also bridgeable to 100W RMS @ 8 ohms, giving you the option to increase power output to select speakers if needed.
- 6 LEDs for 6 zones Power On, Standby and Mute.
- Built in IR emitter output.
- Mini Jack TRS PRE-AMP output on each zone.
- Can be controlled via WS66i Control APP under Slave 1 and 2 page for the source selection, volume, zone on/off, treble, bass, mute and balance.
- Interlocks power on/off with Soundavo WS66i via Trigger I/O.
- Works with optional keypad/IR remote controller.
- 1U-high, rack-wide enclosure; removable rack ears and faceplate included.
- AC 115V / 230V input auto switching
Specification:
Output Power: 25W x 2 per zone (at 8Ω)
Output Power: 50W x 2 per zone (at 4Ω)
Output Power: 100W per zone (Bridged at 8Ω) S/N: >85dB A WTD
THD: <0.1%
Frequency Response: 20Hz-20KHz
Protection Function: Overload, Short Circuit System on Voltage: DC +12V
External Mute Voltage: DC +12V
Power Supply: AC115V/60Hz, 230V/50Hz
THD: <0.1%
Frequency Response: 20Hz-20KHz
Protection Function: Overload, Short Circuit System on Voltage: DC +12V
External Mute Voltage: DC +12V
Power Supply: AC115V/60Hz, 230V/50Hz
Output Connection: 4P Terminal Block
