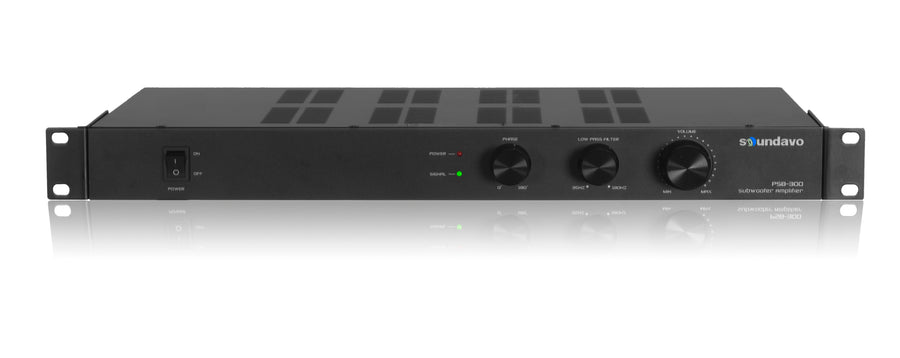

Soundavo PSB-300 Subwoofer Amplifier
Soundavo PSB-300 Subwoofer Amplifier
Regular price
$339.99 USD
Regular price
Sale price
$339.99 USD
Unit price
/
per
Couldn't load pickup availability
The PSB-300 subwoofer amplifier provides 250W RMS @ 4 Ohms (150W RMS @ 8 Ohms) stable power to in wall subwoofers, supports deep, hard-hitting high fidelity bass amplification and is tailored for home audio and home theater audio systems. It includes both line level and high level (already amplified) inputs, that can be used in both home theater surround sound and whole-house audio system applications.With the low pass filter and phase adjustment, you can get the better of bass signal to the subwoofer. 12VDC trigger in/out allows you to turn on this amplifier from external device, and turn on the related device with this amplifier.
Features:
- Low Pass Filter from 35Hz to 180Hz
- Phase adjustment from 0° to 180°
- Volume control
- 12VDC Trigger In/Out
- Selectable multiple Turn-on modes (Music/On/12V)
- RCA loop out.
- 3.5mm jack fro LFE IN (Low frequency effect)
- Power indicator
- RCA loop out.
- 3.5mm jack fro LFE IN (Low frequency effect)
- Power indicator
Spec:
Output: 150W @ 8 Ohm Music Power ( 250W @ 4 Ohms Stable)
Power Consumption: 300W Max
Frequency Response: 10Hz - 180Hz +/- 3dB
Output: 150W @ 8 Ohm Music Power ( 250W @ 4 Ohms Stable)
Power Consumption: 300W Max
Frequency Response: 10Hz - 180Hz +/- 3dB
Low Pass Filter Slope: 12 db/oct
Signal to Noise ratio: >90dB
Auto Off Time: 5 mins
Auto On Sensitivity: 5mV
Input Type: Input RCA Jack / Phoenix Type
Input impedance : RCA 22k Ohm Unbalanced
Line in Sensitivity: 700mV
LEF in Sensitivity: 1.0V
Amplification Fusing T3.15A /115V T1.5A/230V
Signal to Noise ratio: >90dB
Auto Off Time: 5 mins
Auto On Sensitivity: 5mV
Input Type: Input RCA Jack / Phoenix Type
Input impedance : RCA 22k Ohm Unbalanced
Line in Sensitivity: 700mV
LEF in Sensitivity: 1.0V
Amplification Fusing T3.15A /115V T1.5A/230V
